LMK61E2BAA-SIAT - Texas Instruments

Description: Clock Generators & Support Products 156.250-MHz, +/-50 ppm, ultra-low jitter, integrated EEPROM, fully programmable oscillator 8-QFM -40 to 85

Download LMK61E2BAA-SIAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

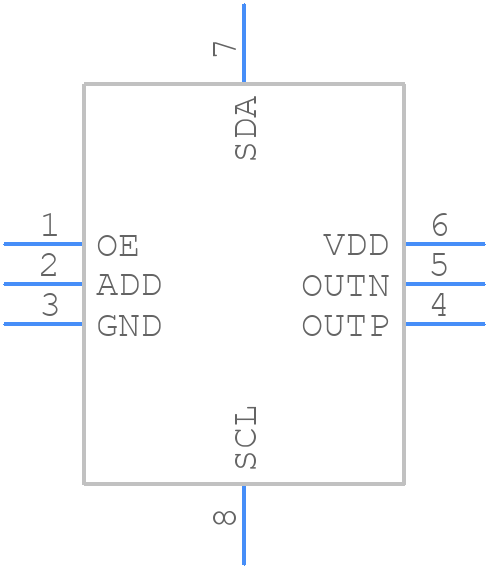

LMK61E2BAA-SIAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK61E2BAA-SIAT - Texas Instruments PCB footprint - Other - Other - SIA0008B
click to zoom
3D Models
LMK61E2BAA-SIAT - Texas Instruments - 3D model - Other - SIA0008B
click to zoom

LMK61E2BAA-SIAT Details

  • Manufacturer Part Number:

    LMK61E2BAA-SIAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.25 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Frequency-Nom:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    125 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.15mm

  • Rise Time-Max:

    0.25 ns

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

LMK61E2BAA-SIAT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the clock signal traces as short as possible and away from other signals. Additionally, use a common mode filter or a ferrite bead to filter out high-frequency noise.
  • Use a low-ESR capacitor (e.g., 0.1uF) as close as possible to the VCC pin, and a larger capacitor (e.g., 10uF) for bulk decoupling. Ensure the power supply is clean and regulated, and use a voltage regulator if necessary.
  • Use a series termination resistor (e.g., 50Ω) at the clock output, and a parallel termination capacitor (e.g., 10pF) to ground. This helps to reduce reflections and ensure signal integrity.
  • Use the TI Clock Design Tool or consult the datasheet to determine the correct register settings for the desired clock frequency. Ensure the crystal oscillator is properly configured and the clock output is enabled.
  • The LMK61E2BAA-SIAT is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK61E2BAA-SIAT Overview

Use the download button to access the LMK61E2BAA-SIAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK61, or try a keyword search, such as XO
