LMP7300MA/NOPB - Texas Instruments

Description: Micropower Precision Comparator and Precision Reference with Adjustable Hysteresis

Download LMP7300MA/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

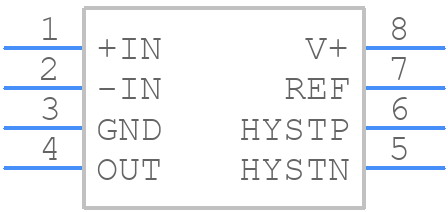

LMP7300MA/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP7300MA/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LMP7300MA/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LMP7300MA/NOPB Details

  • Manufacturer Part Number:

    LMP7300MA/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.003 µA

  • Bias Current-Max (IIB) @25C:

    0.003 µA

  • Input Offset Voltage-Max:

    750 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7700 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage Limit-Max:

    13.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

LMP7300MA/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP7300MA/NOPB involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended compensation network and component values, and ensure that the output capacitor is properly sized and placed close to the device. Additionally, avoid using long traces and minimize the distance between the device and the output capacitor.
  • The LMP7300MA/NOPB can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 12V for optimal performance and reliability.
  • The LMP7300MA/NOPB is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating and ensure reliability.
  • To troubleshoot issues with the LMP7300MA/NOPB, start by checking the PCB layout and ensuring that the device is properly soldered and connected. Then, verify that the input voltage and output capacitor values are within the recommended specifications. If issues persist, use an oscilloscope to analyze the output voltage and identify any signs of oscillation or instability.
