A good PCB layout for the LMP7300MAX/NOPB involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
To ensure stability, make sure to follow the recommended capacitor values and placement, and use a low-ESR capacitor for the output filter. Also, ensure the input and output capacitors are properly decoupled, and the device is operated within the recommended operating conditions.
The LMP7300MAX/NOPB can handle a maximum input voltage of 15V, but it's recommended to operate within the recommended input voltage range of 7V to 12V for optimal performance and reliability.
The LMP7300MAX/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
To troubleshoot issues with the LMP7300MAX/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions, and check for any signs of overheating or thermal shutdown. Use an oscilloscope to check for noise or oscillations on the output, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP7300MAX/NOPB Overview

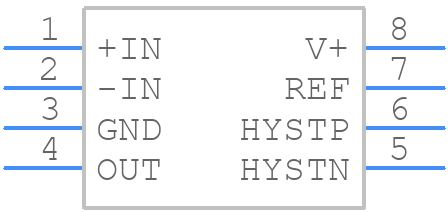

Use the download button to access the LMP7300MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP73,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
