A good PCB layout for the LMP7300MM/NOPB involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the VEE pin to a stable negative voltage source. The recommended bias voltage is between 2.7V and 5.5V. Also, ensure that the input voltage is within the recommended range of 1.8V to 5.5V.
The maximum power dissipation of the LMP7300MM/NOPB is 1.4W. To prevent overheating, ensure good thermal conductivity by using a heat sink or a thermally conductive PCB material. Also, keep the device away from other heat sources and ensure good airflow around the device.
To troubleshoot issues with the LMP7300MM/NOPB, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input and output capacitors are properly connected and of the correct value. Also, check for any layout or routing issues that may be causing noise or oscillations.
The LMP7300MM/NOPB is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum power dissipation may need to be derated. Consult the datasheet for specific temperature-related limitations and derating curves.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP7300MM/NOPB Overview

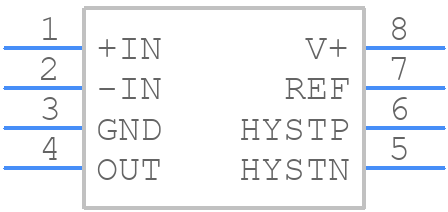

Use the download button to access the LMP7300MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP73,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
