Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, it's essential to follow the recommended operating conditions, such as supply voltage, input common-mode range, and output load. Additionally, it's recommended to use a compensation capacitor (Ccomp) to stabilize the amplifier, and to consider the effects of parasitic capacitance and inductance in the PCB layout.
The maximum power dissipation of the LMP7300MMX/NOPB is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. It's essential to ensure that the calculated power dissipation is within the recommended limits to prevent overheating and damage to the device.
To protect the LMP7300MMX/NOPB from ESD, it's recommended to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, it's recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, in the PCB design to protect the device from ESD events.
The recommended input and output termination for the LMP7300MMX/NOPB depends on the specific application and the frequency of operation. In general, it's recommended to use a 50-ohm termination for high-frequency applications, and a 1-kohm termination for low-frequency applications. It's also recommended to use a series resistor and capacitor network to filter out high-frequency noise and oscillations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMP7300MMX/NOPB Overview

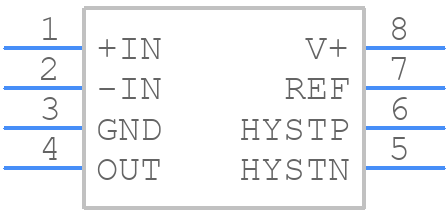

Use the download button to access the LMP7300MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP73,
or try a keyword search, such as Comparators
