Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, it's essential to follow the recommended compensation network, use a stable input voltage, and minimize parasitic capacitance and inductance in the circuit. Additionally, adding a small capacitor (e.g., 10nF) between the output and the inverting input can help to reduce oscillations.
The maximum power dissipation of the LMP7312MA is dependent on the package type and the ambient temperature. The datasheet provides a power dissipation calculation formula: Pd = (Vcc x Icc) + (Vout x Iout). It's essential to ensure that the calculated power dissipation is within the recommended limits to prevent overheating and damage to the device.
Yes, the LMP7312MA can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is low enough to drive the load. Additionally, the gain bandwidth product and the slew rate of the op-amp should be considered to ensure that the signal is not distorted or attenuated.
To protect the LMP7312MA from ESD and overvoltage, it's recommended to use ESD protection diodes, such as the TVS diode, and overvoltage protection circuits, such as a voltage clamp or a crowbar circuit. Additionally, following proper handling and storage procedures, such as using anti-static bags and wrist straps, can help to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP7312MA/NOPB Overview

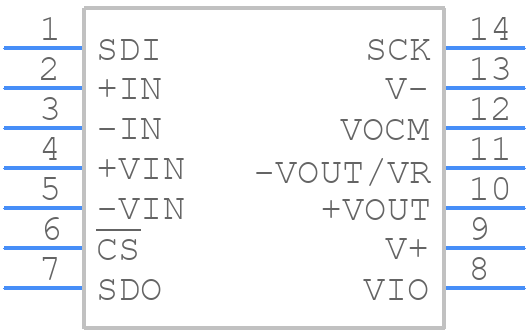

Use the download button to access the LMP7312MA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP73,
or try a keyword search, such as Operational Amplifiers
