LMP7704MTX - Texas Instruments

Description: IC OPAMP GP 4 CIRCUIT 14TSSOP

Download LMP7704MTX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

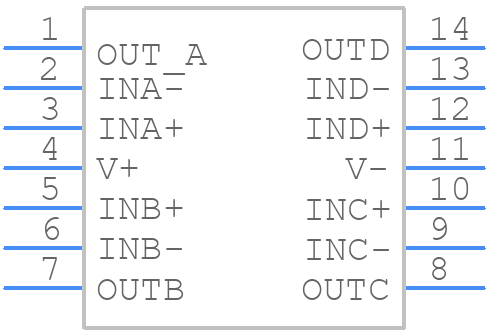

LMP7704MTX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP7704MTX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
LMP7704MTX - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

LMP7704MTX Details

  • Manufacturer Part Number:

    LMP7704MTX

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Bias Current-Max (IIB) @25C:

    0.000001 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    138 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    520 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    6.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2500

  • Voltage Gain-Min:

    50100

  • Wideband:

    NO

  • Width:

    4.4 mm

LMP7704MTX Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, it's essential to keep the input and output traces short and away from digital signals, and to use a solid ground plane to reduce noise and EMI.
  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the input signal. This ensures that the internal biasing and reference circuits are properly established before the input signal is applied.
  • The LMP7704MTX can drive up to 1nF of capacitive load. However, it's essential to ensure that the capacitive load is properly compensated to prevent oscillations and ensure stability. A series resistor can be added to the output to dampen the capacitive load and improve stability.
  • The LMP7704MTX has built-in input overvoltage protection (OVP) that limits the input voltage to a maximum of 6V. If the input voltage exceeds this limit, the amplifier will enter a high-impedance state to prevent damage. Additionally, the device has ESD protection on the input pins to prevent damage from electrostatic discharge.
  • The recommended operating temperature range for the LMP7704MTX is -40°C to 125°C. Temperature affects the amplifier's performance, with increased temperature resulting in increased offset voltage, noise, and power consumption. However, the device is designed to maintain its specifications within the recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMP7704MTX Overview

Use the download button to access the LMP7704MTX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP77, or try a keyword search, such as Operational Amplifiers
