Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
The gain resistor values depend on the desired gain and input impedance of the amplifier. Texas Instruments provides a gain calculation formula in the datasheet, and it's recommended to use an online calculator or simulation tool to determine the optimal resistor values for your specific application.
The maximum power dissipation of the LMP8480 is dependent on the ambient temperature and the thermal resistance of the package. To ensure it doesn't overheat, it's recommended to follow the thermal design guidelines in the datasheet, use a heat sink if necessary, and ensure good airflow around the device.
Yes, the LMP8480 can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this will affect the noise performance and common-mode rejection ratio, so it's recommended to consult the datasheet and application notes for more information.
The recommended input impedance is typically 50 ohms or 1 kohm, depending on the application, and the output impedance should be matched to the load impedance to ensure maximum power transfer and minimal signal reflection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8480ATQDGKRQ1 Overview

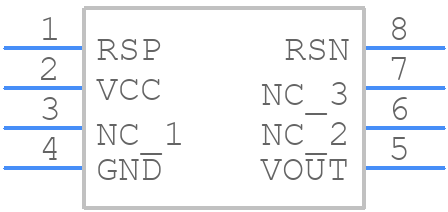

Use the download button to access the LMP8480ATQDGKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP84,
or try a keyword search, such as Operational Amplifiers
