A good PCB layout for the LMP8480MME-T/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected, and the device is operated within its recommended operating conditions. It's also crucial to simulate the circuit using SPICE models or other simulation tools to verify stability.
The LMP8480MME-T/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad or a heat sink can be used to dissipate heat. Additionally, ensure that the device is operated within its recommended operating conditions, and the PCB is designed to minimize thermal resistance.
To troubleshoot issues with the LMP8480MME-T/NOPB, start by verifying the PCB layout and component values against the recommended design. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use oscilloscopes or other measurement tools to analyze the input and output waveforms, and simulate the circuit using SPICE models or other simulation tools to identify the root cause of the issue.
To ensure EMI and EMC compliance, follow the recommended PCB layout guidelines, and use shielding and filtering techniques to minimize electromagnetic radiation. Ensure that the device is operated within its recommended operating conditions, and the PCB is designed to minimize electromagnetic interference. Additionally, perform EMI and EMC testing to ensure compliance with regulatory requirements such as CISPR and FCC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8480MME-T/NOPB Overview

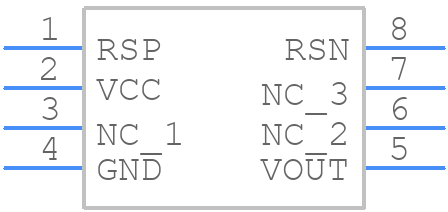

Use the download button to access the LMP8480MME-T/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP84,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
