Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
The gain resistor values depend on the desired gain and input impedance of the amplifier. Texas Instruments provides a gain calculation formula in the datasheet, and it's recommended to use an online calculator or consult with an applications engineer for specific guidance.
The maximum power dissipation of the LMP8481 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated at higher temperatures. It's recommended to consult the thermal resistance tables in the datasheet and perform thermal calculations for the specific application.
Yes, the LMP8481 can be used as a single-ended amplifier, but it's recommended to use a differential input configuration to take advantage of the device's common-mode rejection ratio (CMRR) and noise performance. If a single-ended input is required, a balun or transformer can be used to convert the single-ended signal to a differential signal.
The recommended input and output termination for the LMP8481 is 50 ohms, as specified in the datasheet. This ensures maximum power transfer and minimizes signal reflections. However, the termination impedance may need to be adjusted depending on the specific application and signal frequencies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8481MME-T/NOPB Overview

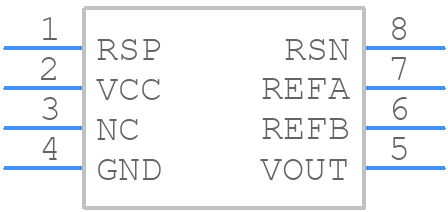

Use the download button to access the LMP8481MME-T/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP84,
or try a keyword search, such as Operational Amplifiers
