A good PCB layout for the LMP8602MAX/NOPB involves separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the LMP8602MAX/NOPB depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages.
The maximum power dissipation of the LMP8602MAX/NOPB is 1.4W. To ensure that it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the ambient temperature below 85°C. Additionally, the device should be operated within the recommended operating conditions and the output current should be limited to the recommended maximum value.
The gain and bandwidth of the LMP8602MAX/NOPB can be configured by selecting the appropriate values for the feedback resistors (Rf and Rg) and the compensation capacitor (Cc). The datasheet provides a gain-bandwidth calculator and a set of application curves to help with the design process.
The recommended input voltage range for the LMP8602MAX/NOPB is 1.8V to 5.5V. Operating the device outside of this range may affect its performance, including the gain, bandwidth, and noise floor. It's recommended to operate the device within the specified input voltage range to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8602MAX/NOPB Overview

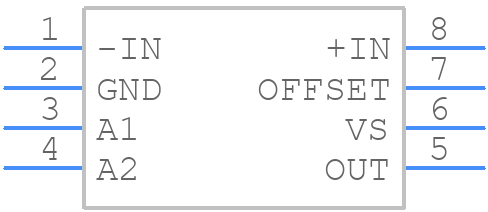

Use the download button to access the LMP8602MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP86,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
