A good PCB layout for the LMP8602QMM involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, adding a small capacitor (e.g., 10nF) between the output and the inverting input can help prevent oscillations.
The maximum power dissipation of the LMP8602QMM is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
While the LMP8602QMM is a high-performance op-amp, it's not necessarily the best choice for audio applications. The device is optimized for high-speed and high-precision applications, and its noise floor and distortion characteristics may not be suitable for high-fidelity audio applications.
To protect the LMP8602QMM from overvoltage and ESD damage, it's essential to use voltage clamps or transient voltage suppressors on the input and output pins. Additionally, following proper ESD handling and storage procedures, such as using anti-static bags and wrist straps, can help prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8602QMM/NOPB Overview

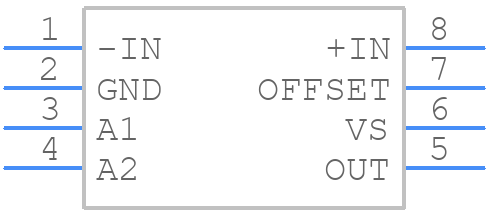

Use the download button to access the LMP8602QMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP86,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
