LMP91002SDE/NOPB - Texas Instruments

Description: Configurable AFE for Low Power H2S and CO Sensing Applications

Download LMP91002SDE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

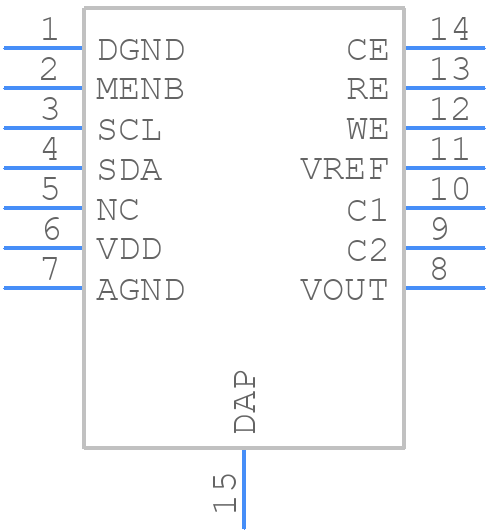

LMP91002SDE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91002SDE/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LMP91002SDE/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LMP91002SDE/NOPB Details

  • Manufacturer Part Number:

    LMP91002SDE/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMP91002SDE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91002SDE/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the sensor to minimize noise. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves applying a known gas concentration to the sensor and adjusting the gain and offset of the LMP91002SDE/NOPB to match the expected output. TI provides a calibration procedure in the datasheet and application notes.
  • The LMP91002SDE/NOPB can operate from -40°C to 125°C, but the optimal operating temperature range for gas sensing is between 20°C to 40°C. Operating outside this range may affect accuracy and reliability.
  • The LMP91002SDE/NOPB is designed to work with specific types of gas sensors, such as electrochemical or metal oxide sensors. Using it with a different type of sensor may require additional circuitry or modifications, and may not be compatible.
  • To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out noise. TI provides EMC guidelines in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMP91002SDE/NOPB Overview

Use the download button to access the LMP91002SDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP91, or try a keyword search, such as Other Signal Circuits
