LMP91002SDX/NOPB - Texas Instruments

Description: Analog Front End - AFE Configurable AFE LMP91002 Sensor AFE System: Configurable AFE Potentiostat for Low-Power Chemical Sensing Applications

Download LMP91002SDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

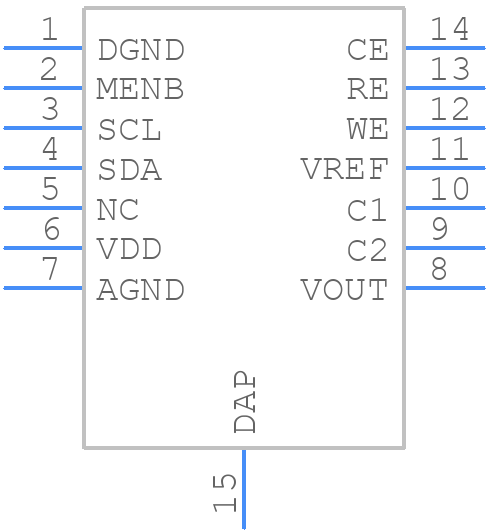

LMP91002SDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91002SDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHL0014B
click to zoom
3D Models
LMP91002SDX/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHL0014B
click to zoom

LMP91002SDX/NOPB Details

  • Manufacturer Part Number:

    LMP91002SDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMP91002SDX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91002SDX/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the sensor to minimize noise. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves adjusting the gain and offset of the device to match the sensor's characteristics. TI provides a calibration procedure in the datasheet, which involves applying a known input signal and adjusting the gain and offset registers accordingly.
  • The LMP91002SDX/NOPB is rated for operation from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider the temperature range of the specific application.
  • Yes, but the device's input impedance may need to be adjusted using external resistors to match the sensor's output impedance. This ensures maximum power transfer and accurate measurements.
  • To minimize EMI, use a shielded cable for the sensor connection, keep the device and sensor close together, and use a ground plane on the PCB. Additionally, consider using EMI filters or shielding on the device's inputs.
