LMP91050MME/NOPB - Texas Instruments

Description: Configurable AFE for Nondispersive Infrared (NDIR) Sensing Applications

Download LMP91050MME/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

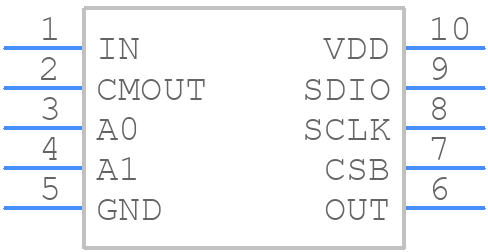

LMP91050MME/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91050MME/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
LMP91050MME/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

LMP91050MME/NOPB Details

  • Manufacturer Part Number:

    LMP91050MME/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LMP91050MME/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAA622, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The internal voltage reference of the LMP91050 can be calibrated by connecting the VREFOUT pin to a precision voltage source and adjusting the VREFTRIM pin to achieve the desired voltage reference level. Refer to the application note SLAA623 for detailed calibration procedures.
  • The maximum allowed input voltage for the analog input pins is VCC + 0.3V, but it is recommended to keep the input voltage within the range of 0V to VCC to ensure accurate measurements and prevent damage to the device.
  • The LMP91050 can be configured for low-power mode by setting the PDWN pin high, which reduces the power consumption to approximately 10uA. Additionally, the device can be put into shutdown mode by setting the SHDN pin high, which reduces the power consumption to less than 1uA.
  • The recommended clock frequency for the SPI interface is up to 10MHz, but the device can operate at higher frequencies with reduced reliability. It is recommended to consult the datasheet and application notes for specific clock frequency requirements and limitations.
