LMP91050MMX/NOPB - Texas Instruments

Description: Configurable AFE for Nondispersive Infrared (NDIR) Sensing Applications

Download LMP91050MMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

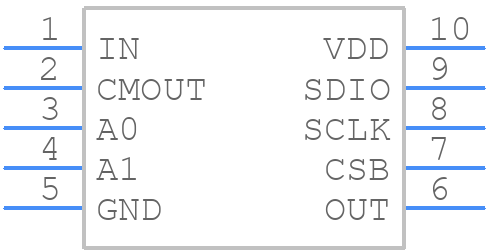

LMP91050MMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91050MMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - LMP91050MMX/NOPB
click to zoom
3D Models
LMP91050MMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - LMP91050MMX/NOPB
click to zoom

LMP91050MMX/NOPB Details

  • Manufacturer Part Number:

    LMP91050MMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LMP91050MMX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91050MMX/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the sensor to minimize noise.
  • Optimizing the gain and offset of the LMP91050MMX/NOPB involves adjusting the gain resistors (R1 and R2) and the offset voltage (Vos) to match the specific requirements of the sensor and application.
  • The LMP91050MMX/NOPB has an operating temperature range of -40°C to 125°C, but the device's performance may degrade at extreme temperatures.
  • To handle EMI with the LMP91050MMX/NOPB, use shielding, filtering, and grounding techniques, and ensure that the device is placed in a shielded area of the PCB.
  • The recommended power-up sequence for the LMP91050MMX/NOPB is to power up the analog supply (AVDD) before the digital supply (DVDD), and to ensure that the analog supply is stable before applying the digital supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMP91050MMX/NOPB Overview

Use the download button to access the LMP91050MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP91, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
