LMP91200MTX/NOPB - Texas Instruments

Description: Analog Front End - AFE Int AFE for Lo-Power pH Sensing App

Download LMP91200MTX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

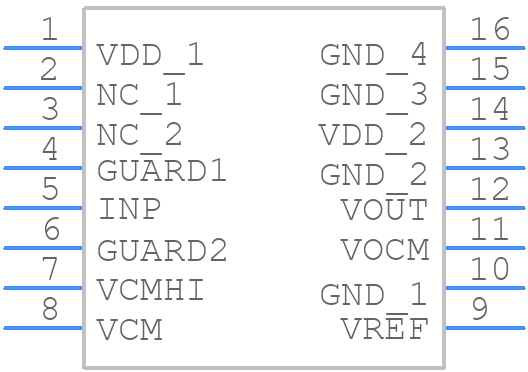

LMP91200MTX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMP91200MTX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G16)
click to zoom
3D Models
LMP91200MTX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G16)
click to zoom

LMP91200MTX/NOPB Details

  • Manufacturer Part Number:

    LMP91200MTX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.3 V

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LMP91200MTX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMP91200MTX/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • The gain resistor values for the LMP91200MTX/NOPB depend on the desired gain and the input signal range. A good starting point is to use the gain resistor calculation formula provided in the datasheet, and then adjust the values based on the specific application requirements.
  • The maximum input voltage that the LMP91200MTX/NOPB can handle is ±25V. However, it's recommended to limit the input voltage to ±20V to ensure optimal performance and to prevent damage to the device.
  • To filter out noise and interference, it's recommended to use a low-pass filter or a band-pass filter at the input stage, and to use a shielded cable or a twisted pair cable to connect the sensor to the LMP91200MTX/NOPB. Additionally, using a common-mode filter or a differential filter can help to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the LMP91200MTX/NOPB is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the input signals. This ensures that the device is properly initialized and configured before the input signals are applied.
