A good PCB layout for the LMP92064SDE/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Additionally, consider using an external calibration circuit or a microcontroller to automate the calibration process.
The LMP92064SDE/NOPB can handle input voltages up to 30V without damage. However, it's recommended to limit the input voltage to 24V or less to ensure optimal performance and to prevent overheating.
The LMP92064SDE/NOPB is rated for operation up to 125°C. However, it's recommended to derate the device's performance at high temperatures to ensure reliability and to prevent overheating. Consult the datasheet for specific derating guidelines.
To troubleshoot common issues, start by checking the PCB layout and ensuring that the device is properly decoupled. Verify that the input and output voltages are within the recommended ranges, and check for any signs of overheating. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP92064SDE/NOPB Overview

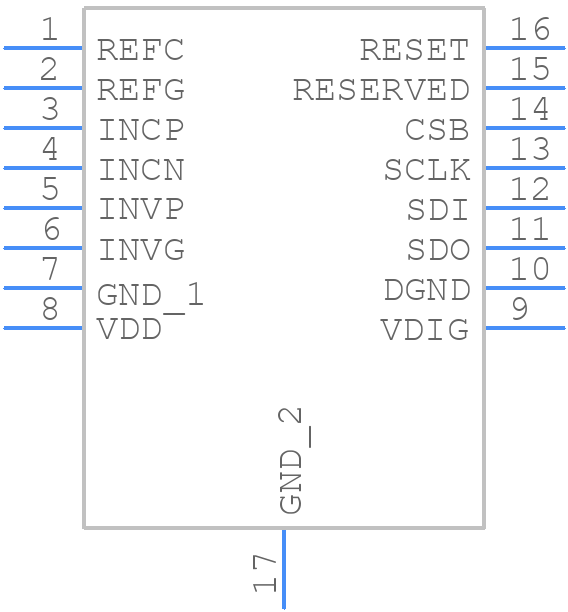

Use the download button to access the LMP92064SDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP92,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
