SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LMP92066PWP Frequently Asked Questions (FAQs)
A good PCB layout for the LMP92066PWP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain and offset calibration for the LMP92066PWP can be optimized by following the calibration procedure outlined in the datasheet. Additionally, it's recommended to use a calibration routine that takes into account the specific requirements of your application, such as the input signal range and the desired output range.
The LMP92066PWP can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure optimal performance and to prevent damage to the device.
To ensure EMC with the LMP92066PWP, it's recommended to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Additionally, it's recommended to follow the guidelines outlined in the datasheet for reducing electromagnetic interference (EMI).
The recommended power-up sequence for the LMP92066PWP is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP92066PWP Overview

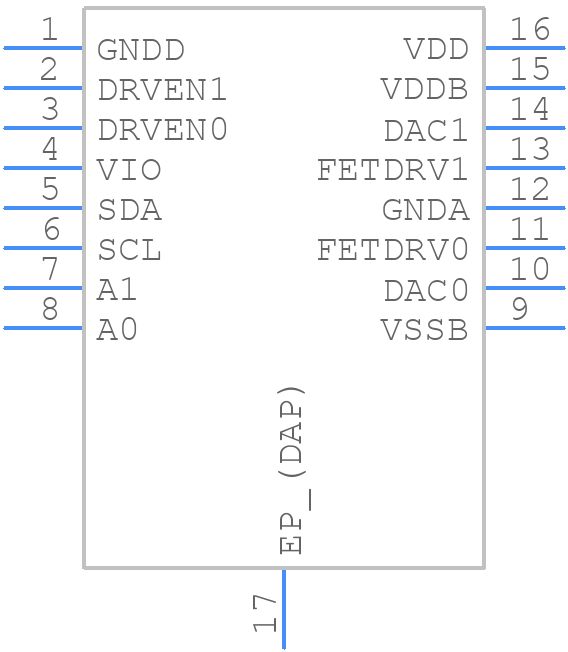

Use the download button to access the LMP92066PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP92,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
