Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, minimizing thermal resistance, and keeping the device away from heat sources.
Verify that the input voltage, output current, and ambient temperature are within the specified ranges. Also, ensure proper thermal management, and consider using thermal monitoring and protection circuits if necessary.
The datasheet doesn't specify a maximum allowed ripple voltage, but as a general rule, it's recommended to keep the input ripple voltage below 10% of the nominal input voltage to ensure stable operation.
While the LMQ66410R5RXBR is a high-quality device, it's essential to review the device's qualification and certification for specific industries, such as AEC-Q100 for automotive applications. Additionally, consider the device's operating temperature range, reliability, and failure-in-time (FIT) rates.
Use the equations provided in the datasheet to calculate the power dissipation (PD) and junction temperature (TJ). Consider factors like input voltage, output current, and ambient temperature. You can also use online calculators or simulation tools to aid in the calculation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMQ66410R5RXBR Overview

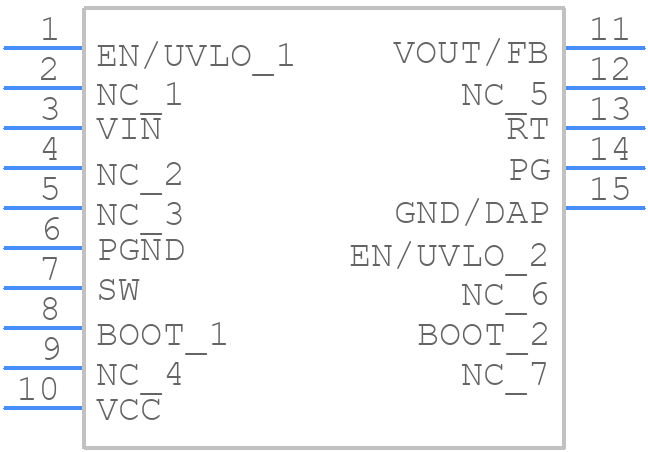

Use the download button to access the LMQ66410R5RXBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMQ66,
or try a keyword search, such as Switching Regulator or Controllers
