Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct to the heat sink or chassis.
Verify that the input voltage, output voltage, and output current are within the specified ranges. Also, ensure the device is operated within the recommended temperature range (-40°C to 125°C) and that the junction temperature (TJ) does not exceed 150°C.
The datasheet recommends a maximum output capacitance of 100 μF. Exceeding this value may lead to instability or oscillations. However, the actual allowed capacitance may vary depending on the specific application and output voltage. It's recommended to perform stability analysis and testing to determine the optimal output capacitance for your design.
The EN pin should be driven high (enabled) after the input voltage has reached the minimum recommended value (VIN ≥ 2.5 V). During power-down, the EN pin should be driven low (disabled) before the input voltage falls below the minimum recommended value. This ensures proper device operation and prevents unwanted startup or shutdown behavior.
A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7 μF and 10 μF is recommended for the input capacitor. This helps to filter out noise and ensure stable operation. However, the actual capacitor value may need to be adjusted based on the specific application and input voltage ripple requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMQ66420MC3RXBRQ1 Overview

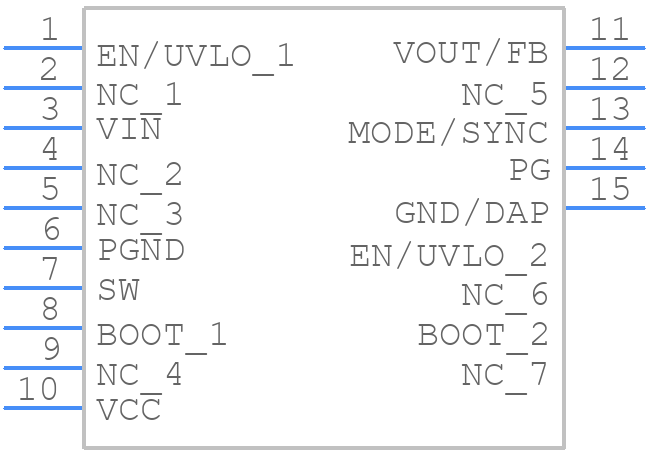

Use the download button to access the LMQ66420MC3RXBRQ1 schematic symbol, PCB footprint, and 3D model.
