A good thermal design should include a solid ground plane, thermal vias, and a heat sink if possible. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure a stable output voltage, make sure to follow the recommended capacitor selection and placement guidelines, and use a low-ESR output capacitor. Additionally, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure proper thermal management and heat dissipation to prevent overheating.
While the LMR10530YSD/NOPB is a high-performance regulator, it's essential to review the device's qualification and certification for specific industries, such as automotive or aerospace. TI provides additional documentation and support for these applications.
TI provides a troubleshooting guide and application notes that cover common issues and their solutions. Additionally, checking the PCB layout, component selection, and input/output voltage levels can help identify and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR10530YSD/NOPB Overview

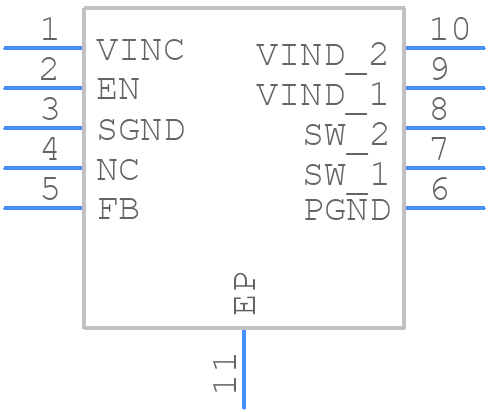

Use the download button to access the LMR10530YSD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR10,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
