Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for low-noise, high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors.
To ensure stability, follow the recommended compensation network and component values, and make sure the output capacitor is properly sized. Additionally, ensure the input and output voltage rails are well-regulated and decoupled, and the device is operated within its recommended operating conditions.
The maximum output current capability of the LMR10530YSDX/NOPB is 3A, but it's recommended to derate the output current based on the ambient temperature and the device's thermal characteristics to ensure reliable operation.
The LMR10530YSDX/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current are within the recommended specifications. Check the PCB layout and component values to ensure they match the recommended design. Use an oscilloscope to measure the output voltage and current waveforms, and check for signs of oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR10530YSDX/NOPB Overview

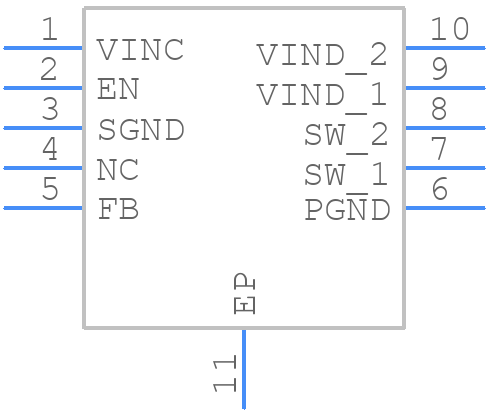

Use the download button to access the LMR10530YSDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR10,
or try a keyword search, such as Switching Regulator or Controllers
