A good PCB layout for the LMR12020 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions.
The maximum ambient temperature range for the LMR12020 is -40°C to 125°C. However, the device can operate at a higher temperature range with derating. Refer to the datasheet for more information.
Yes, the LMR12020 is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
To troubleshoot issues with the LMR12020, start by verifying that the device is operated within its recommended specifications. Check the input and output voltage levels, and ensure that the device is properly decoupled. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for more guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR12020XSD/NOPB Overview

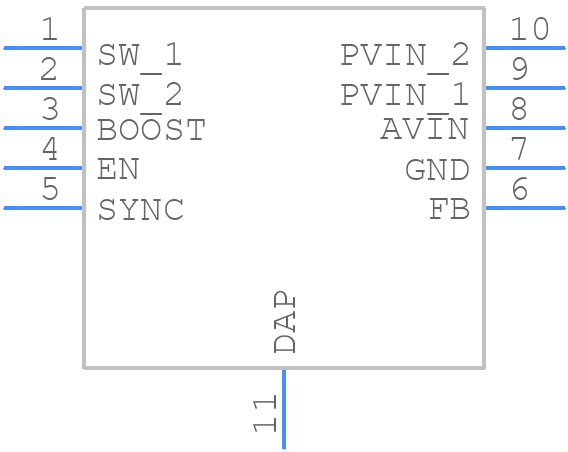

Use the download button to access the LMR12020XSD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR12,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
