A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good copper pour coverage around the device. Additionally, using a 2-3 layer PCB with a solid ground plane can help to dissipate heat more efficiently.
To ensure the device operates within its SOA, monitor the device's voltage, current, and temperature. Use the datasheet's SOA curves to determine the maximum allowable voltage and current for a given temperature. Implement over-voltage, over-current, and over-temperature protection mechanisms to prevent damage.
The recommended input capacitor is a 10uF ceramic capacitor with X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with X7R or X5R dielectric. These values can be adjusted based on the specific application's requirements.
To minimize EMI, use a shielded enclosure, keep the device and its associated components away from antennas and other EMI-sensitive components, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure good PCB layout practices, such as keeping signal traces short and away from the device's pins.
The recommended soldering profile for the LMR14050QDPRTQ1 is a peak temperature of 260°C, with a dwell time of 30-60 seconds above 217°C. A slower ramp-up and cool-down rate can help prevent thermal shock and ensure reliable solder joints.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR14050QDPRTQ1 Overview

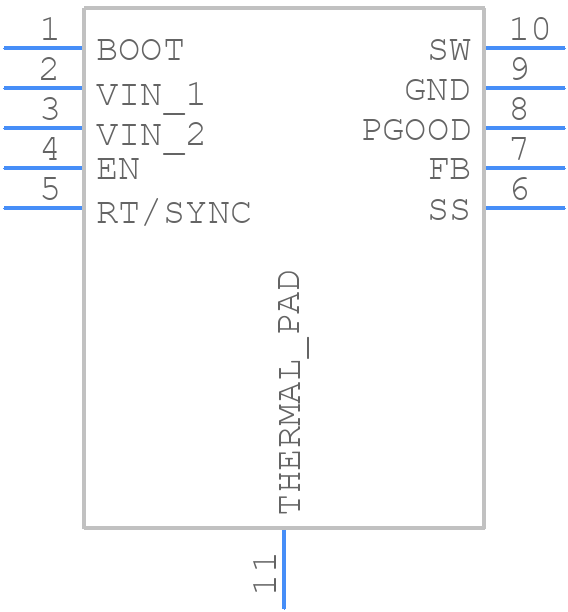

Use the download button to access the LMR14050QDPRTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR14,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
