LMR23630ADDA - Texas Instruments

Description: SIMPLE SWITCHER®, 36V 3A Synchronous Step-Down Converter

Download LMR23630ADDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

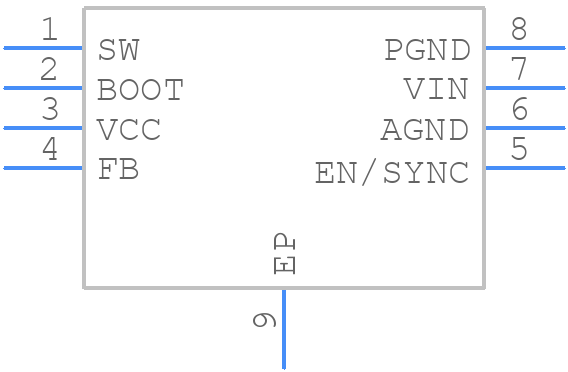

LMR23630ADDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR23630ADDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (PDSO-G8)
click to zoom
3D Models
LMR23630ADDA - Texas Instruments - 3D model - Small Outline Packages - DDA (PDSO-G8)
click to zoom

LMR23630ADDA Details

  • Manufacturer Part Number:

    LMR23630ADDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-07-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    30 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LMR23630ADDA Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using thermal vias and a solid ground plane can help to dissipate heat more efficiently.
  • To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, using a low-ESR output capacitor, minimizing the distance between the output capacitor and the device, and using a feedback resistor with a low tolerance can help to prevent oscillations.
  • The maximum input voltage that can be applied to the LMR23630ADDA without damaging it is 42V. Exceeding this voltage can cause permanent damage to the device.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the output capacitor value, ESR, and the switching frequency. The noise can be calculated using the noise spectral density and the bandwidth of interest.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor. This helps to filter out input voltage noise and ensure stable operation.
