Texas Instruments provides a recommended PCB layout for the LMR23630APQDRRRQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure proper biasing, follow the recommended operating conditions and biasing circuits provided in the datasheet. Additionally, make sure to decouple the input and output pins with suitable capacitors and resistors to minimize noise and oscillations.
The maximum allowed power dissipation for the LMR23630APQDRRRQ1 is dependent on the operating conditions and the thermal design of the PCB. The datasheet provides a thermal resistance (RθJA) value, which can be used to calculate the maximum allowed power dissipation. Typically, it's recommended to keep the junction temperature below 150°C to ensure reliable operation.
The LMR23630APQDRRRQ1 is an automotive-qualified device, which means it meets the requirements for use in automotive applications. However, for high-reliability applications, additional testing and validation may be required to ensure the device meets the specific requirements of the application.
The LMR23630APQDRRRQ1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during manufacturing and assembly to prevent damage to the device. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR23630APQDRRRQ1 Overview

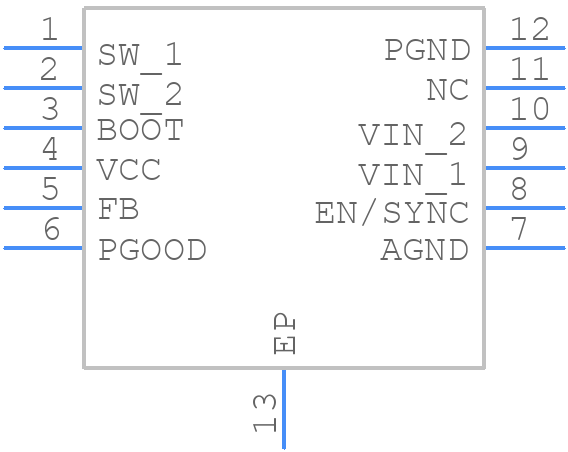

Use the download button to access the LMR23630APQDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
