SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LMR23630QDRRTQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout for the LMR23630QDRRTQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a thermal pad, vias, and a heat sink. Additionally, TI provides a thermal calculator tool to help with thermal design.
To ensure stability, follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output pins with capacitors, and use a low-ESR output capacitor. TI also provides a stability analysis tool to help with design.
The maximum input voltage for the LMR23630QDRRTQ1 is 42V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance and reliability.
The LMR23630QDRRTQ1 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage according to the thermal derating curve in the datasheet. Additionally, ensure proper thermal management and consider using a heat sink if necessary.
The LMR23630QDRRTQ1 has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components, such as fuses or current-limiting resistors, to ensure safe operation and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR23630QDRRTQ1 Overview

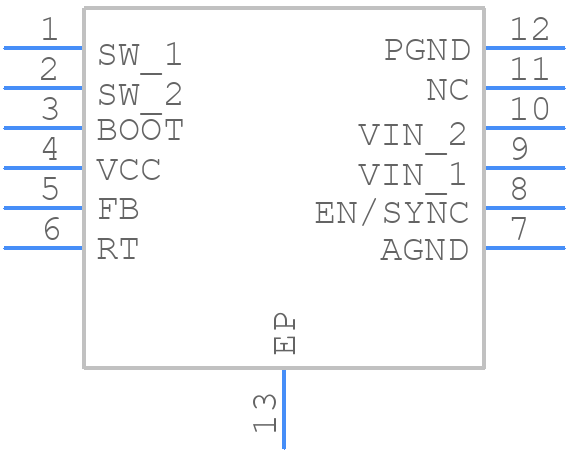

Use the download button to access the LMR23630QDRRTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR23,
or try a keyword search, such as Switching Regulator or Controllers
