Description:Switching Voltage Regulators Automotive 3-V to 65-V, 0.3-A buck converter optimized for size and light load efficiency 9-VQFN-HR -40 to 150
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable start-up and shutdown, it is recommended to add a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the input voltage and ensure that the device is powered up and down correctly.
To ensure EMI and EMC compliance, it is essential to follow good PCB layout practices, such as keeping the switching node away from sensitive analog circuits, using a common-mode choke, and adding EMI filters to the input and output lines.
To optimize the device for low IQ operation, it is recommended to use a low-IQ mode, disable unnecessary features, and adjust the switching frequency to minimize power consumption. Additionally, using a low-VIN, low-IQ LDO regulator can help to reduce the overall system power consumption.
To ensure reliable operation, it is essential to consider thermal design and heat sinking. This includes selecting a suitable heat sink, applying thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR36503MSCQRPERQ1 Overview

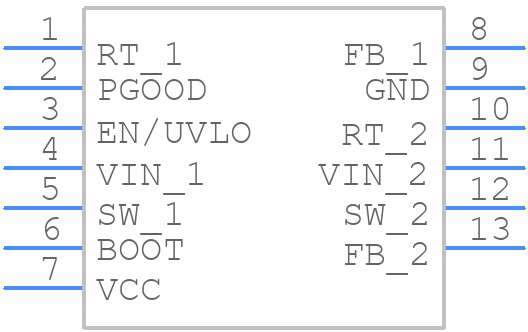

Use the download button to access the LMR36503MSCQRPERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR36,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
