Texas Instruments provides a recommended PCB layout for the LMR36503RS3QRPERQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as placing thermal vias under the device, using a solid ground plane, and keeping the device away from heat sources.
To ensure proper soldering, follow the recommended soldering profile provided in the datasheet, and use a solder with a melting point below 260°C. Also, make sure to clean the PCB and device pins before soldering, and avoid applying excessive force or heat during the soldering process.
The recommended input capacitor value and type depend on the specific application and input voltage. As a general guideline, a 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric is recommended. However, it's best to consult the datasheet and application notes for specific guidance.
The enable pin (EN) should be pulled high during normal operation and pulled low during shutdown. It's recommended to use a pull-up resistor and a capacitor to filter out noise and ensure a clean enable signal. During power-up and power-down sequences, the EN pin should be controlled to prevent unwanted device operation.
The maximum allowed voltage on the output pin (VOUT) during startup or fault conditions is typically limited by the device's internal overvoltage protection (OVP) circuit. According to the datasheet, the OVP threshold is typically around 6.5V, but it's recommended to consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR36503RS3QRPERQ1 Overview

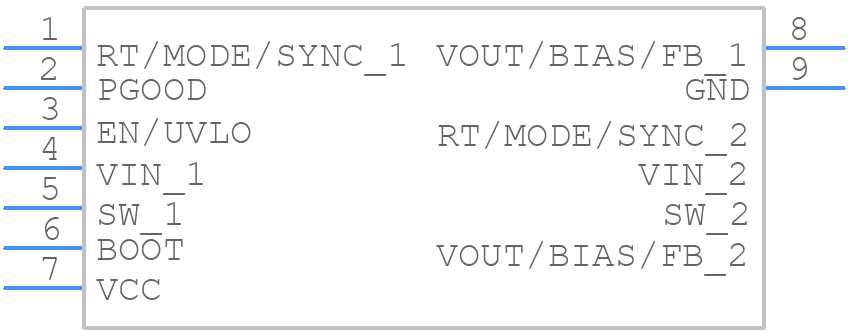

Use the download button to access the LMR36503RS3QRPERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR36,
or try a keyword search, such as Switching Regulator or Controllers
