A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection, under-voltage protection, and over-current protection to prevent damage to the device. Also, ensure the device is operated within the recommended temperature range.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and even permanent damage. It's essential to implement thermal management techniques, such as heat sinks or thermal pads, to keep the junction temperature within the recommended range.
To troubleshoot issues with the device, start by verifying the input voltage, output voltage, and output current. Check for any signs of physical damage, such as overheating or electrical overstress. Use oscilloscopes or other diagnostic tools to analyze the device's behavior and identify the root cause of the issue.
Not following the recommended layout and routing guidelines can lead to reduced device performance, increased electromagnetic interference (EMI), and decreased reliability. It's essential to follow the recommended layout and routing guidelines to ensure optimal device performance and minimize the risk of device failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR36510FADDAR Overview

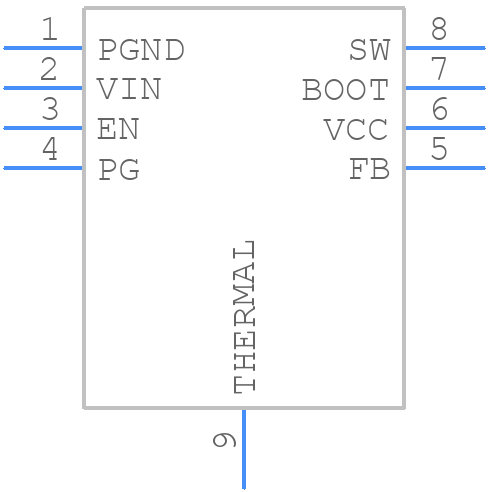

Use the download button to access the LMR36510FADDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR36,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
