Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Additionally, ensure that the device is properly soldered and that the PCB is designed to withstand the operating temperatures.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value depends on the specific application, but a typical value is 10uF to 22uF. It's essential to follow the datasheet recommendations and consider the input voltage ripple, output current, and PCB layout when selecting the input capacitor.
To minimize EMI, follow good PCB design practices, such as using a solid ground plane, keeping the power traces short and direct, and using shielding or filtering components. Additionally, consider using a spread-spectrum clock or reducing the switching frequency to minimize EMI emissions.
The recommended output capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value depends on the specific application, but a typical value is 10uF to 22uF. It's essential to follow the datasheet recommendations and consider the output voltage ripple, output current, and PCB layout when selecting the output capacitor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMS3635NQRNLTQ1 Overview

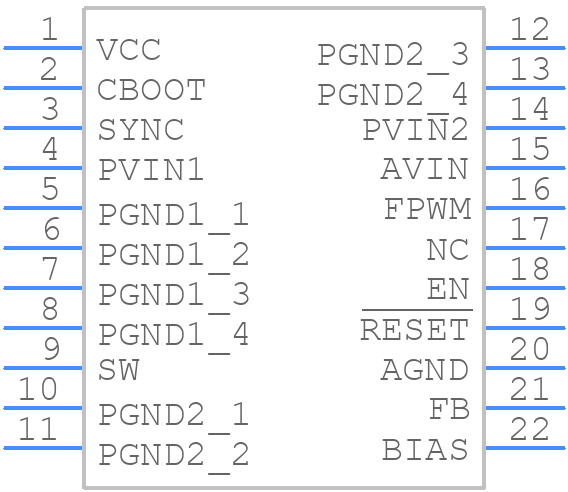

Use the download button to access the LMS3635NQRNLTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMS36,
or try a keyword search, such as Switching Regulator or Controllers
