Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to use a stable input voltage source. Additionally, the datasheet provides guidance on how to adjust the compensation network for specific applications. It's also important to minimize parasitic capacitances and inductances in the PCB layout.
The LMV1090TL has an absolute maximum input voltage rating of 6V, but the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the maximum input voltage can damage the device.
The LMV1090TL is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to consider thermal management techniques, such as heat sinking, to ensure reliable operation.
The output capacitor selection depends on the specific application requirements, such as output voltage ripple, noise, and stability. The datasheet provides guidance on selecting the correct output capacitor, including the recommended capacitance value and ESR (Equivalent Series Resistance) range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMV1090TL Overview

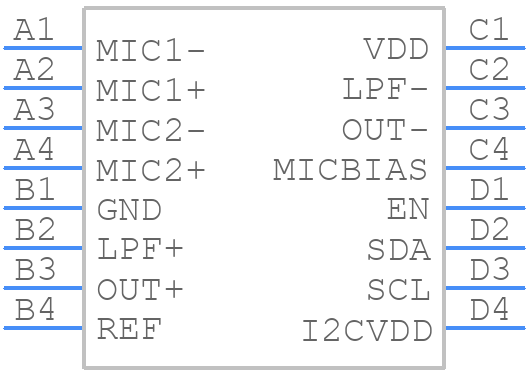

Use the download button to access the LMV1090TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV10,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
