Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, follow the recommended compensation network values and layout, and make sure the output capacitor is properly sized and placed. Additionally, ensure the input and output pins are properly terminated, and the device is operated within its recommended operating conditions.
The LMV1091 can drive a maximum capacitive load of 10nF, but this value can be affected by the output voltage, frequency, and other factors. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum capacitive load for a specific application.
While the LMV1091 is a voltage-controlled oscillator, it's not recommended to use it as a voltage regulator. The device is designed to provide a stable clock signal, not to regulate voltage. Using it as a voltage regulator may lead to instability, oscillations, or other issues.
To synchronize multiple LMV1091 devices, you can use a common clock signal or a phase-locked loop (PLL) circuit. The datasheet provides guidance on synchronizing multiple devices, and Texas Instruments also offers application notes and design resources to help with this task.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMV1091TMX/NOPB Overview

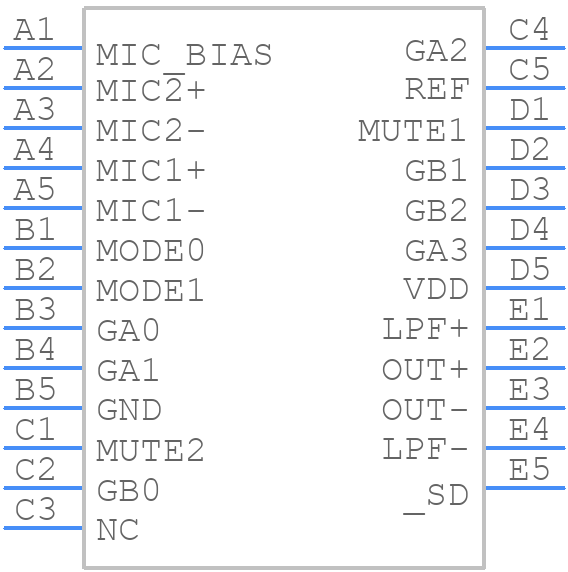

Use the download button to access the LMV1091TMX/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV10,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
