Texas Instruments recommends a star-grounded layout, with the op-amp's ground pin connected to a central ground point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
Choose resistors with a tolerance of 1% or better, and ensure they are rated for the expected voltage and current in your circuit. For high-frequency applications, consider using resistors with a low temperature coefficient (TCR) to minimize drift. Additionally, consider the parasitic capacitance and inductance of the resistors when selecting values.
The maximum power dissipation for the LMV554MTX/NOPB is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is below the maximum rating to prevent overheating.
The LMV554MTX/NOPB is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature (Tj) should not exceed 150°C. Ensure that the device is properly heatsinked and that the operating conditions are within the recommended specifications.
To ensure EMC, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and keeping sensitive traces away from noise sources. Additionally, consider using shielding, filtering, and decoupling capacitors to reduce electromagnetic radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMV554MTX/NOPB Overview

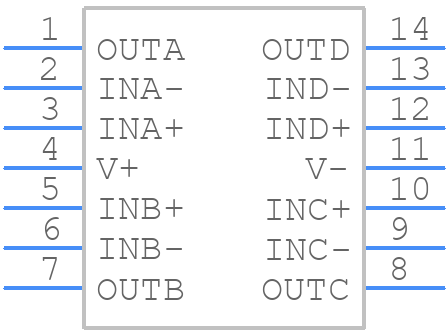

Use the download button to access the LMV554MTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV55,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
