Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
Optimizing performance requires understanding the specific requirements of your application, such as frequency range, power level, and noise tolerance. TI provides application notes and design guides that can help, and it's also recommended to consult with TI's technical support team or a experienced RF engineer.
The LMX2491RTWT is specified to operate from -40°C to 85°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using thermal management techniques such as heat sinks or thermal interfaces.
The LMX2491RTWT requires a specific biasing and configuration to operate correctly. TI provides a detailed description of the recommended biasing and configuration in the datasheet, and it's also recommended to consult with TI's technical support team or a experienced RF engineer to ensure the device is properly configured for your specific application.
The LMX2491RTWT can be susceptible to noise and interference from various sources, including power supply noise, thermal noise, and electromagnetic interference. To mitigate these effects, it's recommended to use proper power supply decoupling, shielding, and grounding techniques, as well as to follow good RF design practices such as using filters and attenuators.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2491RTWT Overview

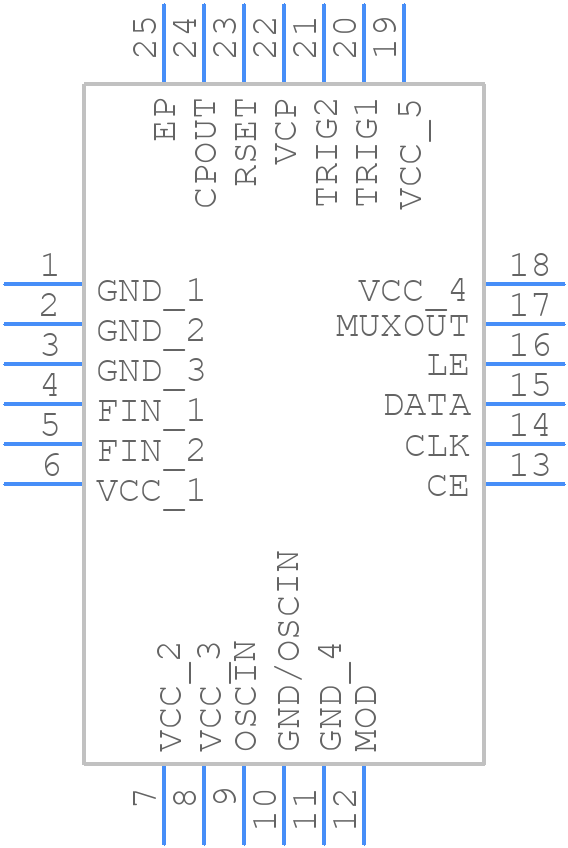

Use the download button to access the LMX2491RTWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
