A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) between VCC and GND, and place it close to the device. Keep the loop area of the oscillator circuit as small as possible.
Use the TI's WEBENCH tool or the LMX2571NJKT datasheet's frequency calculation formulas to determine the required R, C, and L values for the desired frequency output. The device has a programmable PLL, so you can adjust the frequency by programming the PLL registers.
The maximum input clock frequency is 250 MHz. However, the device can also be used with lower frequency inputs, such as 10 MHz or 25 MHz, depending on the specific application requirements.
Ensure the device is operated within the recommended operating conditions, including voltage, temperature, and power supply noise. Use a stable and low-noise power supply, and decouple the device with a capacitor (e.g., 100nF) between VCC and GND. Also, ensure the device is properly configured and programmed for the specific application.
The LMX2571NJKT is specified to operate from -40°C to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 85°C, consider using a different device or implementing additional thermal management measures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2571NJKT Overview

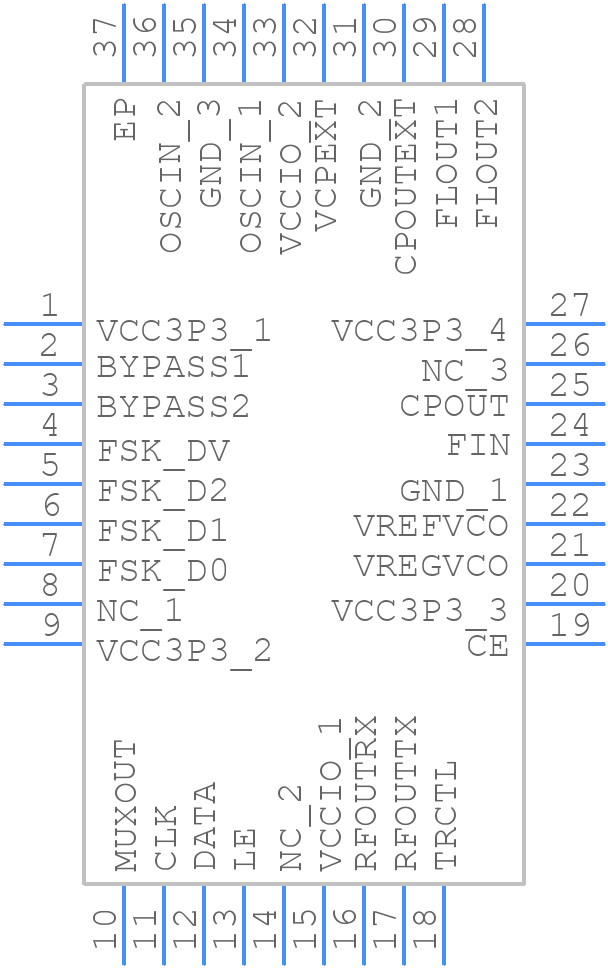

Use the download button to access the LMX2571NJKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as Other Telecom ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
