LMX2572LPRHAR - Texas Instruments

Description: Phase Locked Loops - PLL 2-GHz low power wideband RF synthesizer with FSK modulation 40-VQFN -40 to 85

Download LMX2572LPRHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

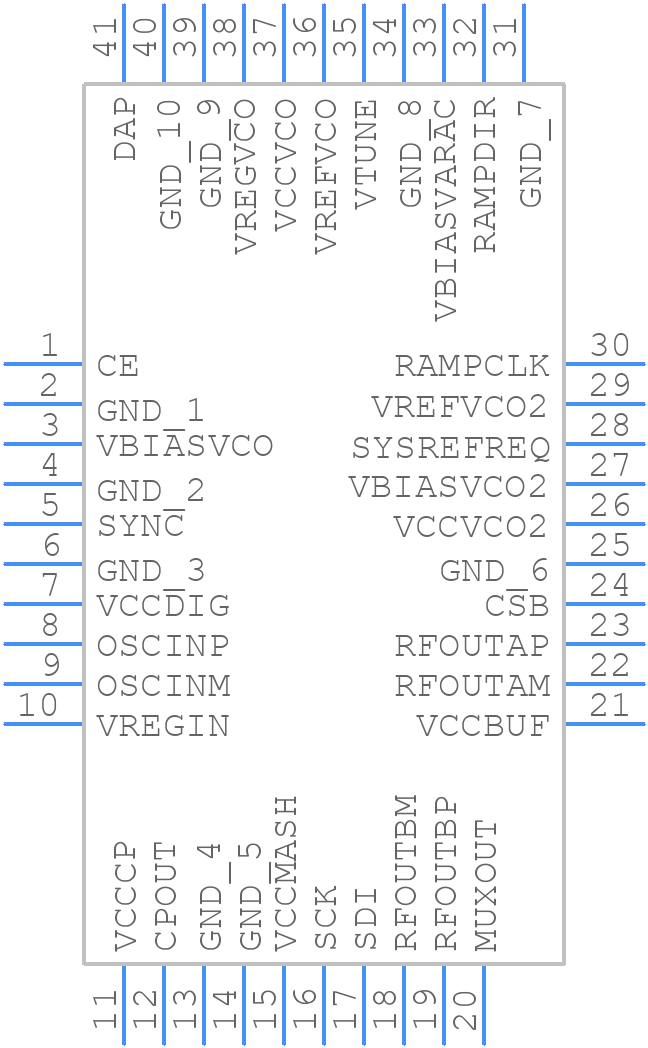

Symbol
LMX2572LPRHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2572LPRHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040H
click to zoom
3D Models
LMX2572LPRHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040H
click to zoom

LMX2572LPRHAR Details

  • Manufacturer Part Number:

    LMX2572LPRHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-06-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    2000 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMX2572LPRHAR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VDD pin and a 10uF capacitor for the VREG pin.
  • The PLL loop filter values depend on the specific application and frequency range. Use the TI PLL Loop Filter Calculator tool or consult the TI application notes for guidance on selecting the optimal values for your design.
  • The maximum frequency deviation allowed for the reference clock input is ±50 ppm. Exceeding this limit may affect the PLL's ability to lock onto the reference clock.
  • Use the TI Jitter Calculator tool to estimate the jitter performance of the LMX2572LPRHAR in your specific application. You can also consult the TI application notes for guidance on minimizing jitter in your design.
  • Power up the device in the following sequence: VDD, VREG, and then the reference clock input. This ensures proper device initialization and minimizes the risk of latch-up or other issues.
