A good PCB layout for the LMX2572RHAT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground.
To optimize the loop filter design, you should consider the desired PLL bandwidth, phase noise, and spurious performance. A good starting point is to use the recommended loop filter component values provided in the datasheet, and then adjust them based on your specific application requirements.
The LMX2572RHAT can handle input frequencies up to 1.5 GHz. However, the device's performance may degrade at higher frequencies, and the input signal amplitude should be adjusted accordingly to ensure optimal performance.
To program the LMX2572RHAT using the SPI interface, you need to follow the SPI protocol and timing requirements outlined in the datasheet. You should also ensure that the device is properly powered and configured before attempting to program it.
The typical power consumption of the LMX2572RHAT is around 350 mW, but this can vary depending on the specific application, operating frequency, and output power. It's recommended to consult the datasheet and perform power consumption calculations based on your specific use case.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2572RHAT Overview

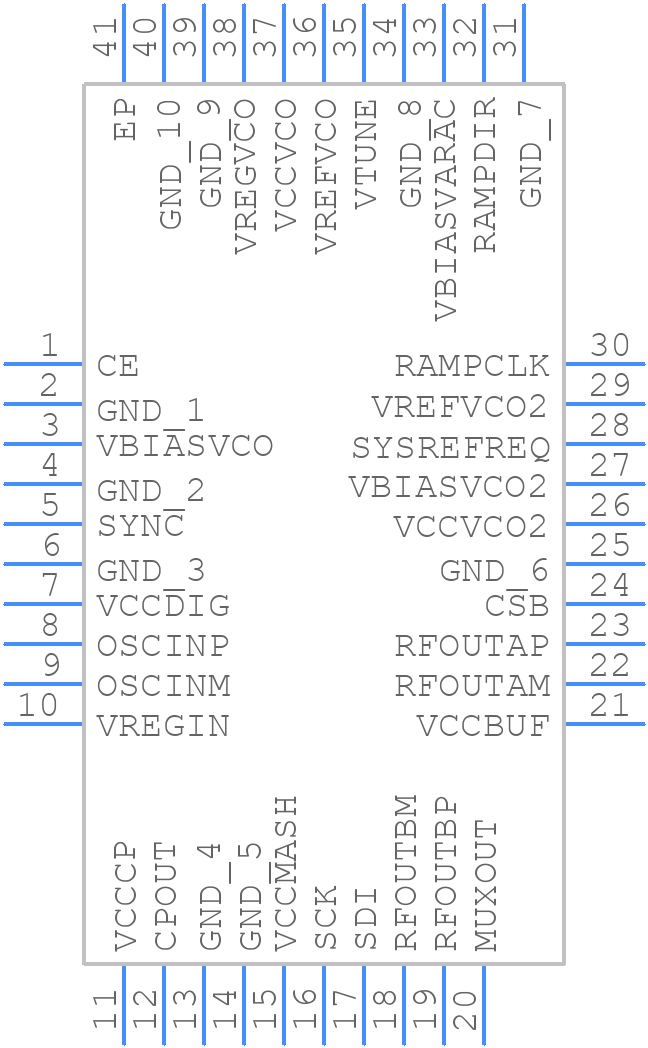

Use the download button to access the LMX2572RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
