LMX2594RHAT - Texas Instruments

Description: 15 GHz Wideband PLLatinum™ RF Synthesizer with Phase Synchronization and JESD204B support

Download LMX2594RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

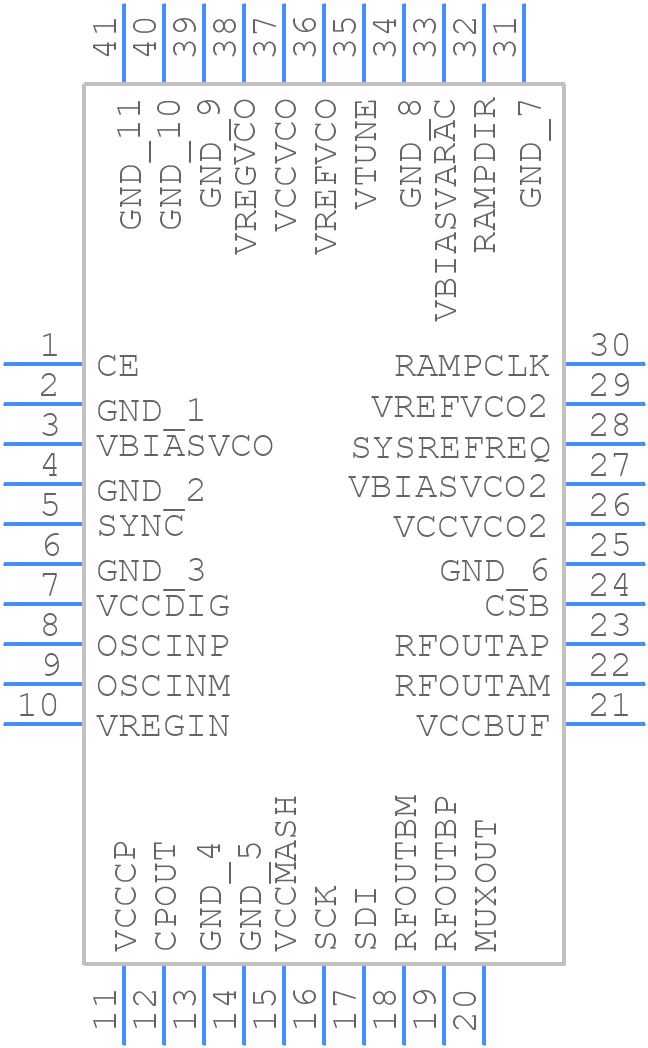

LMX2594RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2594RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA (S-PVQFN-N40)_2
click to zoom
3D Models
LMX2594RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA (S-PVQFN-N40)_2
click to zoom

LMX2594RHAT Details

  • Manufacturer Part Number:

    LMX2594RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-04-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

LMX2594RHAT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin. Keep the loop area of the clock input traces as small as possible to minimize noise.
  • Use the TI's Clock Design Tool or the LMX2594RHAT evaluation module software to generate the desired frequency output. The tool will provide the required register settings and configuration data for the device.
  • The maximum frequency deviation allowed for the input clock signal is ±50 ppm. Exceeding this limit may affect the device's performance and accuracy.
  • Yes, the LMX2594RHAT can be used as a clock multiplier. It can multiply the input clock frequency by a factor of 1 to 4095 using the device's internal PLL.
  • Use the POR (Power-On Reset) pin to ensure the device is in a valid state after power-up. The POR pin should be connected to a 10kΩ pull-up resistor and a 0.1uF capacitor to ensure a clean power-up sequence.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2594RHAT Overview

Use the download button to access the LMX2594RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX25, or try a keyword search, such as PLL or Frequency Synthesis Circuits
