A good PCB layout for the LMZ10503EXTTZE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback resistors are chosen to provide a stable gain. Additionally, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
The maximum ambient temperature range for the LMZ10503EXTTZE/NOPB is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum operating temperature should be derated based on the specific application and thermal design.
Yes, the LMZ10503EXTTZE/NOPB is a high-reliability device that meets the requirements of various aerospace and defense standards, including MIL-PRF-38535 and NASA's EEE-INST-002. However, it is essential to consult with Texas Instruments' sales team and ensure that the device meets the specific requirements of your application.
To troubleshoot issues with the LMZ10503EXTTZE/NOPB, start by verifying that the device is properly powered and that the input voltage is within the specified range. Check the output voltage and current, and ensure that the device is not overheating. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ10503EXTTZE/NOPB Overview

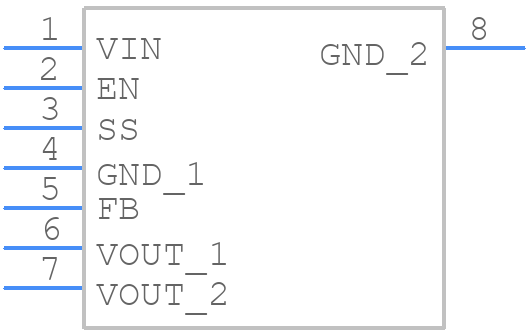

Use the download button to access the LMZ10503EXTTZE/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ10,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
