A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a solid ground plane, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using a 2-3 layer PCB with a thermal relief pattern can help to dissipate heat more efficiently.
To ensure the output voltage is stable and accurate, it's essential to follow proper PCB layout guidelines, use a stable input voltage, and decouple the input and output with suitable capacitors. Additionally, selecting the correct output capacitor value and type, and using a low-ESR capacitor can help to minimize output voltage ripple and ensure stability.
The recommended input capacitor value and type depend on the specific application and input voltage. However, as a general guideline, a 10-22uF ceramic or electrolytic capacitor with a low ESR (Equivalent Series Resistance) is recommended. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
To protect the device from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a voltage monitor IC that can detect and respond to voltage faults. Additionally, using a TVS (Transient Voltage Suppressor) diode or a zener diode can help to clamp voltage transients and prevent damage to the device.
The recommended output capacitor value and type depend on the specific application and output voltage. However, as a general guideline, a 10-47uF ceramic or electrolytic capacitor with a low ESR is recommended. The capacitor should be placed as close as possible to the VOUT pin to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMZ10504TZ-ADJ/NOPB Overview

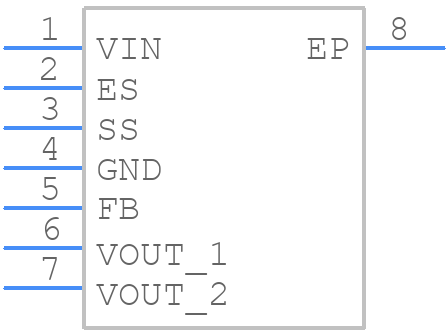

Use the download button to access the LMZ10504TZ-ADJ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ10,
or try a keyword search, such as Switching Regulator or Controllers
