Part Image

LMZ21700SILT - Texas Instruments

Description: 3V to 17V, 0.65A Step-Down DC/DC Power Module in 3.5mm × 3.5mm Package

Download LMZ21700SILT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

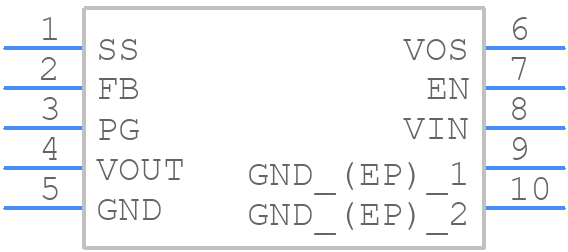

LMZ21700SILT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMZ21700SILT - Texas Instruments PCB footprint - Other - Other - SIL0008E
click to zoom
3D Models
LMZ21700SILT - Texas Instruments - 3D model - Other - SIL0008E
click to zoom

LMZ21700SILT Details

  • Manufacturer Part Number:

    LMZ21700SILT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.65 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

LMZ21700SILT Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMZ21700SILT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure the LMZ21700SILT operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the device is not subjected to excessive voltage, current, or temperature stress. Refer to the datasheet for the recommended operating conditions and thermal management guidelines.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 6.3V.
  • Choose an output capacitor with a low ESR and a value of 10uF to 22uF. The capacitor should be placed close to the VOUT pin and have a voltage rating of at least 2.5V. Consider the output capacitor's ripple current rating and ensure it can handle the maximum output current.
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is high (above 1.4V), the device is enabled, and when it's low (below 0.4V), the device is disabled. Connect the EN pin to a logic signal or a voltage source to control the device's operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LMZ21700SILT Overview

Use the download button to access the LMZ21700SILT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMZ21, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
