The maximum output power of LNK6764V depends on the input voltage, output voltage, and other design parameters. However, Power Integrations recommends a maximum output power of 65W for this device.
To ensure reliable start-up of the LNK6764V, make sure to follow the recommended start-up sequence, provide a stable input voltage, and ensure that the output voltage is within the specified range. Additionally, a soft-start circuit can be implemented to reduce inrush current and prevent voltage spikes.
To minimize EMI, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, keep the high-frequency components (such as the transformer and switching FET) close together, and use a shielded transformer. Additionally, ensure that the PCB traces are short and direct, and use a common mode choke to filter the output.
When selecting a transformer for LNK6764V, consider the input voltage, output voltage, and power rating. Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimize losses. Power Integrations provides a transformer design guide to help with the selection process.
The LNK6764V has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conduction between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the specified range. Monitor the device temperature and adjust the design accordingly to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LNK6764V Overview

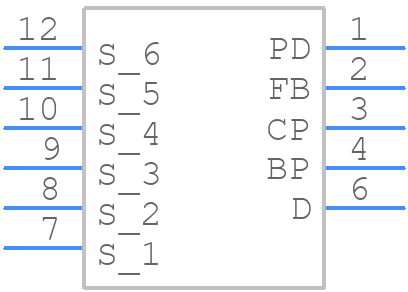

Use the download button to access the LNK6764V schematic symbol, PCB footprint, and 3D model.
