- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LP2951ACN
- Part Number LP2951ACN
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - P (R-PDIP-T8)
- Released Date Jan 11, 2017
- Last Modified Date Jun 7, 2025 4:14 AM UTC
- Pinout / Pin List Click Here (Member Only)
LP2951ACN Details
-
Manufacturer Part Number:
LP2951ACN
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Adjustability:
FIXED/ADJUSTABLE
LP2951ACN Frequently Asked Questions (FAQs)
-
The minimum input voltage required for the LP2951ACN to operate is 3.5V, but it's recommended to have at least 1V of headroom above the output voltage to ensure proper regulation.
-
The output voltage of the LP2951ACN can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.235V), R1 is the resistance between the output and the adjust pin, and R2 is the resistance between the adjust pin and ground.
-
The maximum output current of the LP2951ACN is 50mA, but it's recommended to derate the output current based on the input voltage and ambient temperature to ensure reliable operation.
-
To ensure stability of the LP2951ACN output voltage, it's recommended to use a minimum output capacitance of 2.2uF, and to place the capacitor close to the output pin. Additionally, the input capacitor should be at least 1uF to filter out noise and ripple.
-
The LP2951ACN is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage based on the ambient temperature to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
Trust Checks
System Verified
LP2951ACN Overview

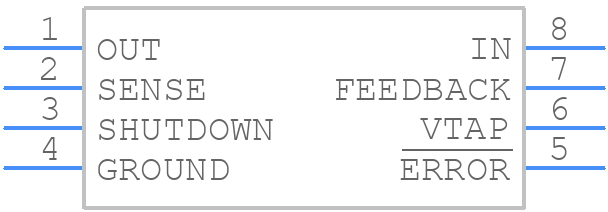

Use the download button to access the LP2951ACN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP295,
or try a keyword search, such as Linear Regulator ICs
