- Part Number LP2995MR
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P620X168-9N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LP2995MR Details
-
Manufacturer Part Number:
LP2995MR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LP2995MR Frequently Asked Questions (FAQs)
-
The recommended input capacitor value for LP2995MR is 10uF to 22uF, with a voltage rating of at least 6.3V. This capacitor helps to filter out noise and ripple on the input voltage.
-
To ensure stability of the LP2995MR output voltage, it is recommended to use a minimum output capacitor value of 10uF with an ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, the output capacitor should be placed as close as possible to the output pin of the device.
-
The maximum input voltage that LP2995MR can handle is 15V. Exceeding this voltage may cause damage to the device or affect its performance.
-
LP2995MR is rated for operation up to 125°C junction temperature. However, it is recommended to derate the output current and input voltage to ensure reliable operation in high-temperature environments.
-
The output voltage of LP2995MR can be calculated using the following formula: Vout = 1.5V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage range is from 1.5V to 5.5V.
Trust Checks
System Verified
LP2995MR Overview

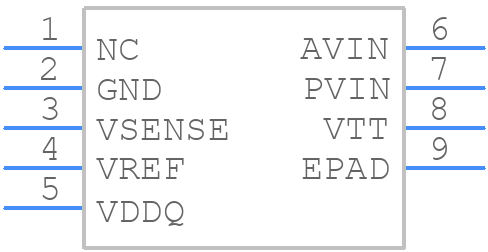

Use the download button to access the LP2995MR schematic symbol, PCB footprint, and 3D model.
