LP2996MX/NOPB - Texas Instruments

Description: 1.5A DDR termination regulator with shutdown pin for DDR2

Download LP2996MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

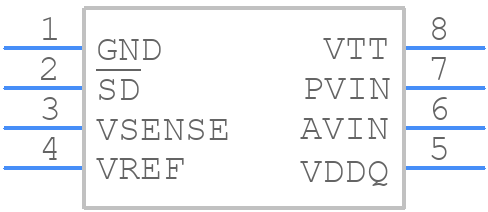

Symbol
LP2996MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP2996MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LP2996MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LP2996MX/NOPB Details

  • Manufacturer Part Number:

    LP2996MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LP2996MX/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LP2996MX/NOPB is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent overheating.
  • To ensure the stability of the output voltage, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed as close to the output pin as possible.
  • The maximum output current that the LP2996MX/NOPB can deliver is 500mA. However, it's recommended to keep the output current below 400mA for optimal performance and to prevent overheating.
  • To reduce the noise and ripple on the output voltage, it's recommended to use a bypass capacitor (typically 10nF to 100nF) between the VIN and GND pins, and to keep the output capacitor as close to the output pin as possible.
  • The thermal shutdown temperature of the LP2996MX/NOPB is typically around 150°C to 160°C. When the junction temperature exceeds this threshold, the device will shut down to prevent damage.
