Texas Instruments provides a recommended PCB layout in the LP3906 application note (SLVAU65) that includes thermal vias, copper pours, and component placement guidelines to minimize thermal resistance and ensure optimal performance.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The LP3906 datasheet provides a detailed capacitor selection guide.
Although the datasheet specifies a maximum input voltage of 15V, the LP3906 can handle up to 18V for short durations (e.g., during startup or voltage transients). However, sustained operation above 15V may reduce the device's reliability and lifespan.
The LP3906 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. TI recommends derating the output current and voltage at high temperatures to ensure reliable operation. A thermal analysis and simulation can help determine the device's performance in a specific application.
TI provides a troubleshooting guide in the LP3906 application note (SLVAU65) that covers common issues such as output voltage regulation, oscillations, and thermal shutdown. Additionally, TI's E2E forums and support teams can provide further assistance and guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP3906SQ-FXPI/NOPB Overview

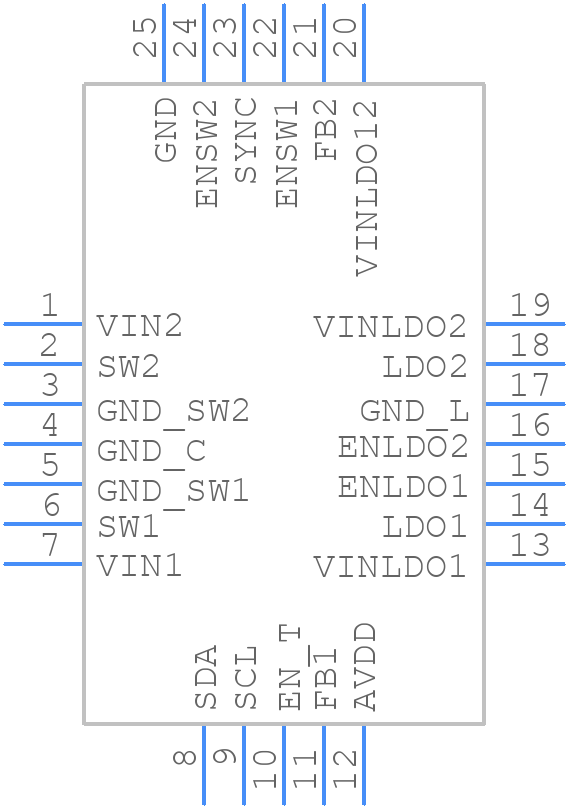

Use the download button to access the LP3906SQ-FXPI/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP390,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
