Texas Instruments provides a recommended PCB layout for the LP3907QSQ-JJXP/NOPB in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The LP3907QSQ-JJXP/NOPB has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. However, it's recommended to follow the power-up sequencing guidelines in the datasheet and to use an external reset circuit if necessary.
The maximum junction temperature (Tj) for the LP3907QSQ-JJXP/NOPB is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
The LP3907QSQ-JJXP/NOPB is a QFN package device, which is generally suitable for high-vibration and high-shock environments. However, it's recommended to follow proper mounting and soldering techniques, and to ensure the device is properly secured to the PCB to prevent damage or detachment.
Texas Instruments provides a troubleshooting guide in the datasheet, which includes steps for identifying and resolving common issues. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the device and identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP3907QSQ-JJXP/NOPB Overview

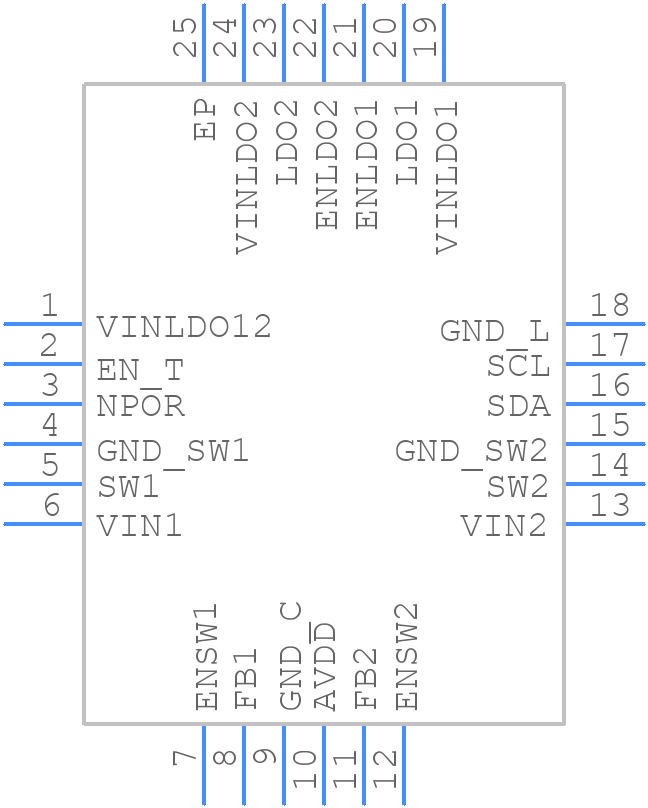

Use the download button to access the LP3907QSQ-JJXP/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP390,
or try a keyword search, such as Switching Regulator or Controllers
