LP3907QTL-VXSS/NOPB - Texas Instruments

Description: Dual High-Current Step-Down DC/DC and Dual Linear Regulator with I2C-Compatible Interface

Download LP3907QTL-VXSS/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

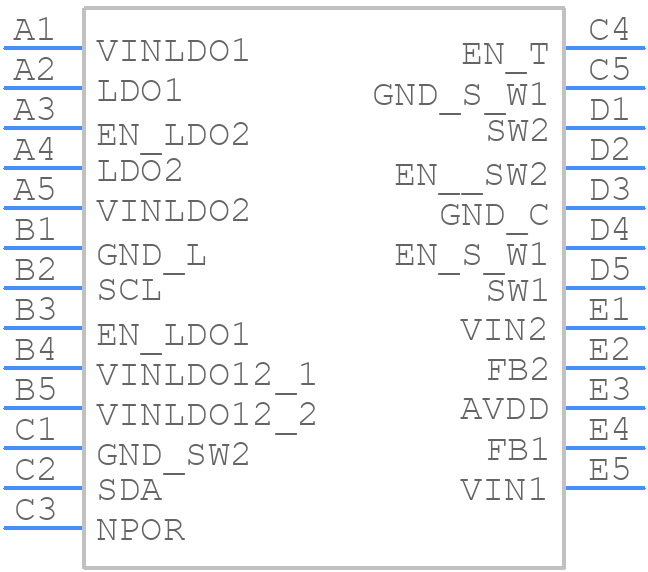

LP3907QTL-VXSS/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP3907QTL-VXSS/NOPB - Texas Instruments PCB footprint - BGA - BGA - YZR0025(H=0.675mm)
click to zoom
3D Models
LP3907QTL-VXSS/NOPB - Texas Instruments - 3D model - BGA - YZR0025(H=0.675mm)
click to zoom

LP3907QTL-VXSS/NOPB Details

  • Manufacturer Part Number:

    LP3907QTL-VXSS/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.4905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2100 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.4905 mm

LP3907QTL-VXSS/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet. Additionally, ensure good airflow and thermal conduction to the PCB.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
  • To troubleshoot output voltage instability or oscillation issues, check the PCB layout for any signs of noise or ringing, ensure that the input capacitor is properly sized and placed, and verify that the output capacitor is properly sized and has a low ESR. Also, check for any signs of overheating or thermal issues.
